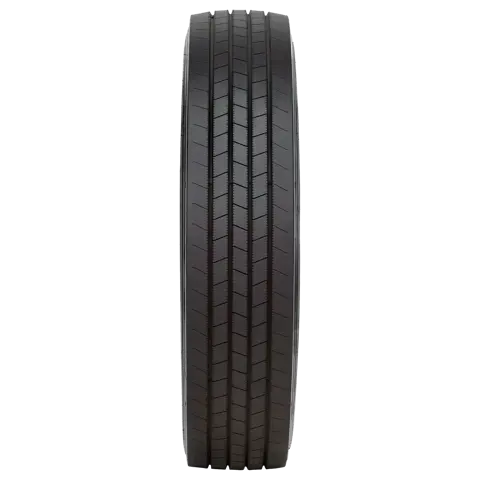

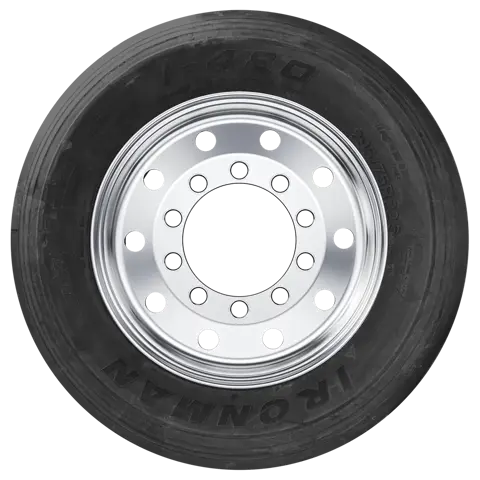

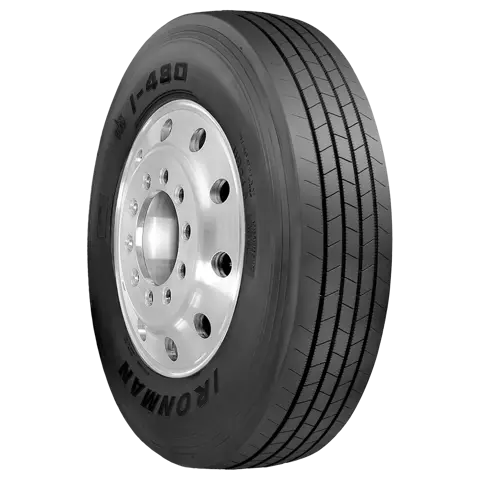

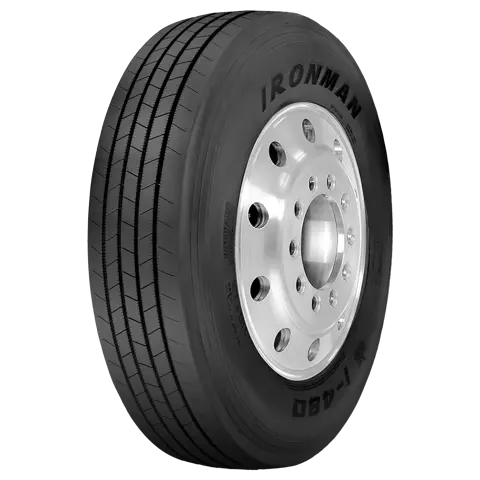

I-480

Long Haul | Trailer

DISCONTINUED - Replacement tire. GEN 2 I-48T

WARRANTY*

Trust is about confidence. At Ironman Tires confidence comes at no additional cost because we back our tires with robust warranties to get you where you are going...confidently.

*Valid in the US and Canada only. See the Ironman Peace of Mind Warranty for complete details and exclusions.


CASING ALLOWANCE
Tires carry a casing allowance for 1 retread

WORKMANSHIP & MATERIALS
Backed by a 60-month Limited Protection Policy covering defects in workmanship and materials.

Sizes & Specifications

ITEM # SIZE LOAD/SPEED PLY RATING MIN RIM WIDTH MAX RIM WIDTH TREAD DEPTH (32NDS) WEIGHT (LBS) OVERALL DIAMETER (IN) SECTION WIDTH SINGLE MAX LOAD @ PRESSURE DUAL MAX LOAD @ PRESSURE RPM
93124 11R22.5/14 144/142 - M G 7.50 8.25 12.0 103.51 41.49 11 6175@105 5840@105 501
93125 11R22.5/16 148/145 - M H 7.50 8.25 12.0 105.45 41.49 11 6940@123 6390@123 501
93176 295/75R22.5/14 144/141 - M G 8.25 9.00 12.0 103.93 39.92 11.61 6175@110 5675@110 521
93177 295/75R22.5/16 146/143 - M H 8.25 9.00 12.0 104.58 39.92 11.61 6610@120 6005@120 521
ITEM # SIZE LOAD/SPEED PLY RATING MIN RIM WIDTH MAX RIM WIDTH TREAD DEPTH (32NDS) WEIGHT (LBS) OVERALL DIAMETER (IN) SECTION WIDTH SINGLE MAX LOAD @ PRESSURE DUAL MAX LOAD @ PRESSURE RPM
91922 11R24.5/14 146/143 - L G 7.50 8.25 12.0 111.77 43.46 11 6610@105 6005@105 478
91923 11R24.5/16 149/146 - L H 7.50 8.25 12.0 113.82 43.46 11 7160@120 6610@120 478
93178.1 285/75R24.5/14 144/141 - L G 8.25 8.25 12.0 111.75 41.34 11.22 6175@110 5675@110 503
93194 285/75R24.5/16 147/144 - L H 8.25 8.25 12.0 111.75 41.34 11.22 6780@120 6175@120 503
