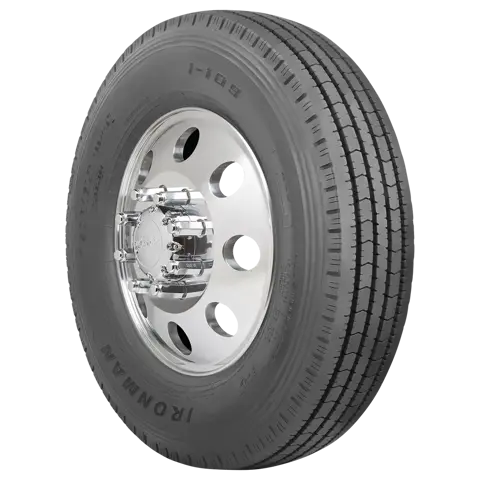

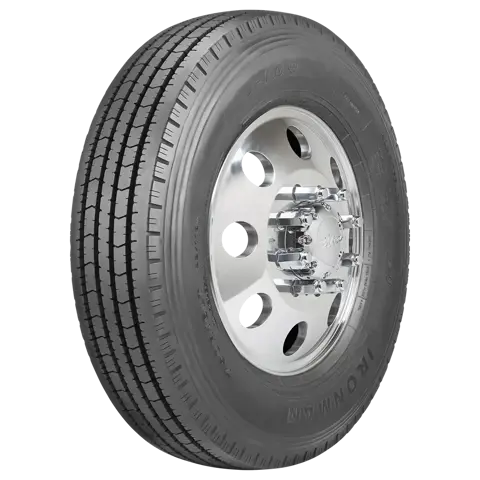

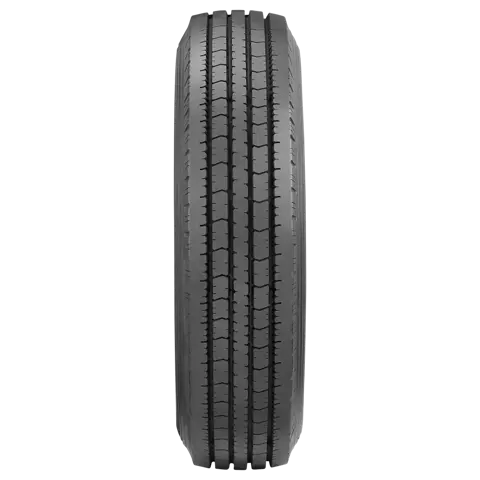

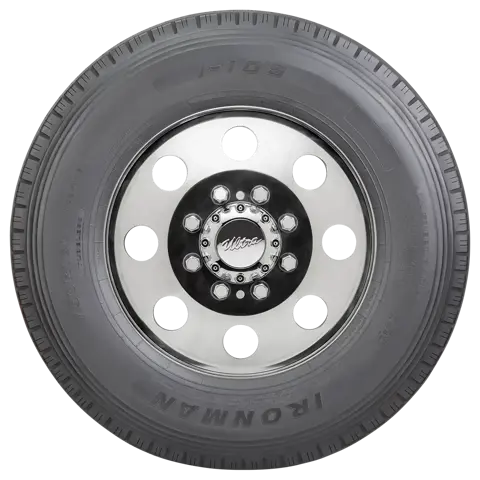

I-109

Commercial Light Truck | All-Steel

DISCONTINUED - Replacement tire. GEN 2 I-19A



WARRANTY*

Trust is about confidence. At Ironman Tires confidence comes at no additional cost because we back our tires with robust warranties to get you where you are going...confidently.

*Valid in the US and Canada only. See the Ironman Peace of Mind Warranty for complete details and exclusions.


CASING ALLOWANCE
Tires carry a casing allowance for 1 retread

WORKMANSHIP & MATERIALS
Backed by a 60-month Limited Protection Policy covering defects in workmanship and materials.

Sizes & Specifications

ITEM # SIZE LOAD/SPEED PLY RATING MIN RIM WIDTH MAX RIM WIDTH TREAD DEPTH (32NDS) WEIGHT (LBS) OVERALL DIAMETER (IN) SECTION WIDTH SINGLE MAX LOAD @ PRESSURE DUAL MAX LOAD @ PRESSURE RPM
93354 7.50R16LT/14 122/118 - N G 6.00 7.00 15.1 58.92 31.69 7.50 3305@112 2910@112 660
ITEM # SIZE LOAD/SPEED PLY RATING MIN RIM WIDTH MAX RIM WIDTH TREAD DEPTH (32NDS) WEIGHT (LBS) OVERALL DIAMETER (IN) SECTION WIDTH SINGLE MAX LOAD @ PRESSURE DUAL MAX LOAD @ PRESSURE RPM
86202 215/75R17.5/16 135/133 - J H 6.00 6.75 15.7 57.04 30.20 8.46 4805@123 4540@123 693
86205 235/75R17.5/18 143/141 - J J 6.75 7.50 16.8 66.44 31.38 9.25 6005@128 5675@128 667
96917 245/70R17.5/18 143/141 - J J 6.75 7.50 16.4 70.32 31.06 9.65 6005@128 5675@128 668
ITEM # SIZE LOAD/SPEED PLY RATING MIN RIM WIDTH MAX RIM WIDTH TREAD DEPTH (32NDS) WEIGHT (LBS) OVERALL DIAMETER (IN) SECTION WIDTH SINGLE MAX LOAD @ PRESSURE DUAL MAX LOAD @ PRESSURE RPM
86203 225/70R19.5/14 128/126 - M G 6.00 6.75 16.4 64.44 31.89 8.86 3970@110 3750@110 655
86206 245/70R19.5/16 136/134 - M H 6.75 7.50 16.4 75.21 33.03 9.65 4940@120 4675@120 633
ITEM # SIZE LOAD/SPEED PLY RATING MIN RIM WIDTH MAX RIM WIDTH TREAD DEPTH (32NDS) WEIGHT (LBS) OVERALL DIAMETER (IN) SECTION WIDTH SINGLE MAX LOAD @ PRESSURE DUAL MAX LOAD @ PRESSURE RPM
90301 11R22.5/14 144/142 - L G 7.50 8.25 17.9 114.67 41.50 11 6175@105 5840@105 501
90302 11R22.5/16 148/145 - M H 7.50 8.25 17.9 116.62 41.50 11 6940@123 6390@123 501
90305 295/75R22.5/14 144/141 - L G 8.25 9.00 17.9 113.58 39.92 11.61 6175@110 5675@110 521
90306 295/75R22.5/16 146/143 - L H 8.25 9.00 17.9 114.15 39.92 11.61 6610@120 6005@120 521
ITEM # SIZE LOAD/SPEED PLY RATING MIN RIM WIDTH MAX RIM WIDTH TREAD DEPTH (32NDS) WEIGHT (LBS) OVERALL DIAMETER (IN) SECTION WIDTH SINGLE MAX LOAD @ PRESSURE DUAL MAX LOAD @ PRESSURE RPM
90303.1 11R24.5/14 146/143 - L G 7.50 8.25 17.9 124.18 43.46 11 6610@105 6005@105 478
90304 11R24.5/16 149/146 - L H 7.50 8.25 17.9 126.25 43.46 11 7160@120 6610@120 478
90307 285/75R24.5/14 144/141 - L G 8.25 8.25 17.9 117.73 41.34 11.22 6175@110 5675@110 503
