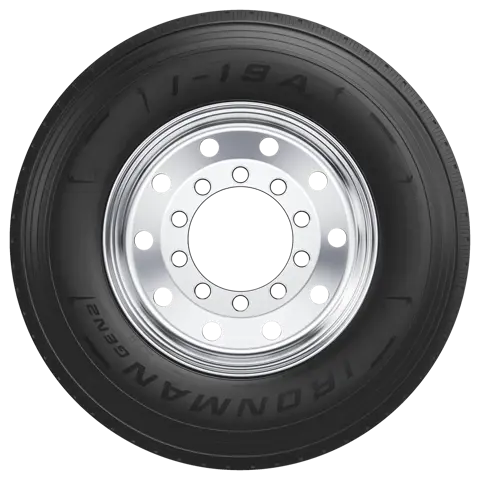

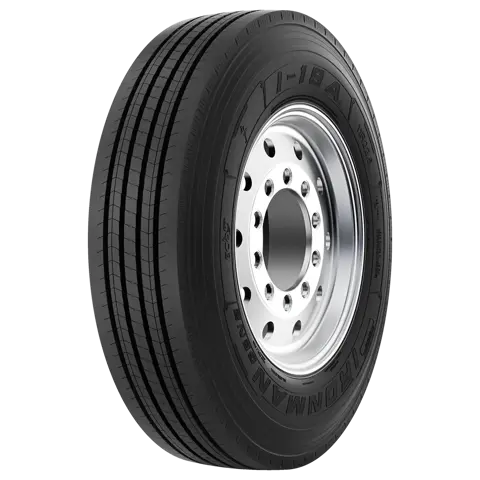

GEN 2 I-19A

All-Position

The I-Series GEN 2 I-19A is a durable all-position tire crafted to seamlessly go from the highway to rugged high-scrub environments to stop-and-go local routes reducing downtime and ensuring on-time commitments. The calculated pattern design and next-gen tread compound reduce heat build-up, providing an ideal balance of improved fuel efficiency and an impressive 15% longer treadwear compared to its predecessor.

Replaces the Ironman I-109.

Features & Benefits

  • Scrub resistance achieved through upgraded compounds and solid shoulder ribs evenly distributing vehicle weight for longer tire life.
  • Wavy outer grooves maximize tear resistance while stone ejector platforms protect the belts from stone drilling.
  • Enhanced siping channels water from the tread for enhanced wet handling and braking and protects grooves from onset of irregular wear.
  • Curb guard helps protect the sidewall from impacts and damage.
Find A Dealer

WARRANTY*

Trust is about confidence. At Ironman Tires confidence comes at no additional cost because we back our tires with robust warranties to get you where you are going...confidently.

*Valid in the US and Canada only. See the Ironman Peace of Mind Warranty for complete details and exclusions.


CASING ALLOWANCE
Tires carry a casing allowance for 2 retreads

72 MONTH
Backed by a 72-month Limited Protection Policy covering defects in workmanship and materials.

WORKMANSHIP & MATERIALS
If this tire becomes unserviceable due to a flaw in workmanship or materials, we will replace it at no charge during the first 50% of tread life.

Sizes & Specifications

ITEM # SIZE LOAD/SPEED PLY RATING MIN RIM WIDTH MAX RIM WIDTH TREAD DEPTH (32NDS) WEIGHT (LBS) OVERALL DIAMETER (IN) SECTION WIDTH SINGLE MAX LOAD @ PRESSURE DUAL MAX LOAD @ PRESSURE RPM
98621 215/75R17.5/16 135/133 - L H 6.00 6.75 16.5 59.40 30.20 8.46 4805@123 4540@123 690
98622 235/75R17.5/18 143/141 - L J 6.75 7.50 16.5 66.20 31.40 9.25 6005@128 5675@128 667
98623 245/70R17.5/18 143/141 - J J 6.75 7.50 17.5 75.20 31.10 9.65 6005@128 5675@128 669
ITEM # SIZE LOAD/SPEED PLY RATING MIN RIM WIDTH MAX RIM WIDTH TREAD DEPTH (32NDS) WEIGHT (LBS) OVERALL DIAMETER (IN) SECTION WIDTH SINGLE MAX LOAD @ PRESSURE DUAL MAX LOAD @ PRESSURE RPM
98640.1 225/70R19.5/14 128/126 - N G 6.75 7.50 16.5 63.30 32.00 8.86 3970@110 3750@110 655
98642 245/70R19.5/16 136/134 - N H 7.50 8.25 17.5 77.30 33.10 9.65 4940@120 4675@120 633
98644 265/70R19.5/18 143/141 - K J 7.50 8.25 17.5 82.80 34.20 10.43 6005@123 5675@123 612
ITEM # SIZE LOAD/SPEED PLY RATING MIN RIM WIDTH MAX RIM WIDTH TREAD DEPTH (32NDS) WEIGHT (LBS) OVERALL DIAMETER (IN) SECTION WIDTH SINGLE MAX LOAD @ PRESSURE DUAL MAX LOAD @ PRESSURE RPM
98631.1 11R22.5/16 148/145 - M H 7.50 8.25 18.0 115.70 41.50 11 6940@123 6390@123 501
98620.1 255/70R22.5/16 140/137 - M H 7.50 8.25 18.0 91.30 36.60 10.04 5510@120 5070@120 552
98764 275/70R22.5/18 152/148 - L J 8.25 9.00 20.2 108.40 37.70 10.83 7830@135 6940@135 551
98625 295/75R22.5/14 144/141 - M G 8.25 9.00 18.0 113.00 39.90 11.61 6175@110 5675@110 520
98626 295/75R22.5/16 146/143 - M H 8.25 9.00 18.0 113.70 39.90 11.61 6610@120 6005@120 520
ITEM # SIZE LOAD/SPEED PLY RATING MIN RIM WIDTH MAX RIM WIDTH TREAD DEPTH (32NDS) WEIGHT (LBS) OVERALL DIAMETER (IN) SECTION WIDTH SINGLE MAX LOAD @ PRESSURE DUAL MAX LOAD @ PRESSURE RPM
98636 11R24.5/16 149/146 - M H 7.50 8.25 18.0 124.40 43.50 11 7160@120 6610@120 478
98615 285/75R24.5/14 144/141 - M G 8.25 9.00 18.0 115.80 41.30 11.22 6175@110 5675@110 502
